Check Out New 500W Small Grid Tie Power Inverter Converter For Wind Generator Air Breeze 10.8V - 30V Dc to 90-130V AC Stackable

Best Price : Availability : Usually ships in 1-2 business days

New 500W Small Grid Tie Power Inverter Converter For Wind Generator Air Breeze 10.8V - 30V Dc to 90-130V AC Stackable Features Normal AC Output Power:450W; Maximum AC Output Power:500W; Peak Inverter Efficiency: 92% AC Output Voltage Range: 90V ~ 130V; DC Input Voltage Range: 10.8V ~ 30V; Total Harmonic Distortion(THD):<5%; Power Factor: 0.99 AC Output Frequency Range: 46Hz ~ 65Hz; Output Current Waveform:Pure Sine-wave; Standby Power consumption:<0.5W Features:MPPT Function/Over Current Protection/Over Temperature Protection/Reverse Polarity Protection/Island Protection/Stackable Package Includes: Power inverter and Power cord. Simple and safe installation /Reverse polarity protection /Constant Power Output

New 500W Small Grid Tie Power Inverter Converter For Wind Generator Air Breeze 10.8V - 30V Dc to 90-130V AC Stackable Overviews

Preface

The grid-tie inverter can transfer wind energy from wind generators directly into the home grid using no extra equipment. It can be connected to any outlet (conventional network) in the home. The grid-tie inverter controls the phase and the frequency and voltage of the power generated by the wind generator. It produces a pure sine-wave and matches that of the grid.

This model grid-tie has build in bridge rectifier and dump load controller, it can maintain the rotating speed of the wind turbine and keep the voltage from the wind turbine always at the range of the rated range of the grid tie inverter. It also has a high voltage protection function, when the wind is too big, and the dump load controlling system can't keep the output voltage from the wind turbine, the controller will disconnect itself from the wind turbine, so it is very safe to be used.

Note: It can be only used in dry place.

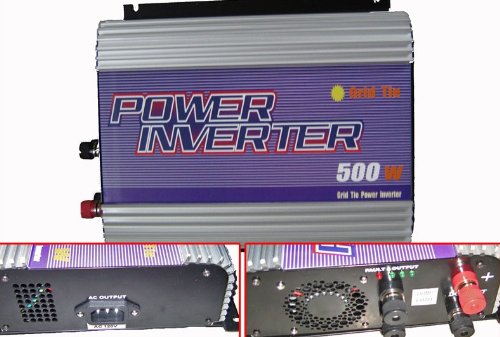

There are 4 terminals on the left side of the inverter, one red terminals and one black will be connected to the phase output from the wind turbine, and 2 black terminals will be connected to dump load resistors.

There are 4 LED indicators, 3 green indicators and 1 red indicator, 3 green LED indicators will start to cycle from left to right when the grid and AC input supply is detected. This indicates the inverter is operating under normal condition. The rate of the cycling is according to how much power is being output from the wind turbine. The bigger the output power is, the faster the rate is.

If there is no AC grid detected, the red LED will be on, the inverter will not put out power, this is called "Island Protection" .

Some Other Specifications

Simple and safe installation

Reverse polarity protection

Constant Power Output

N.W: 3.5Kg

G.W: 4.0Kg

Dimension: 332mm*265mm*135mm

Operating Temperature Range: -10 ~ 45 centigrade
